SIEMENS SIMATIC S7-200

 -

SIMATIC S7-200

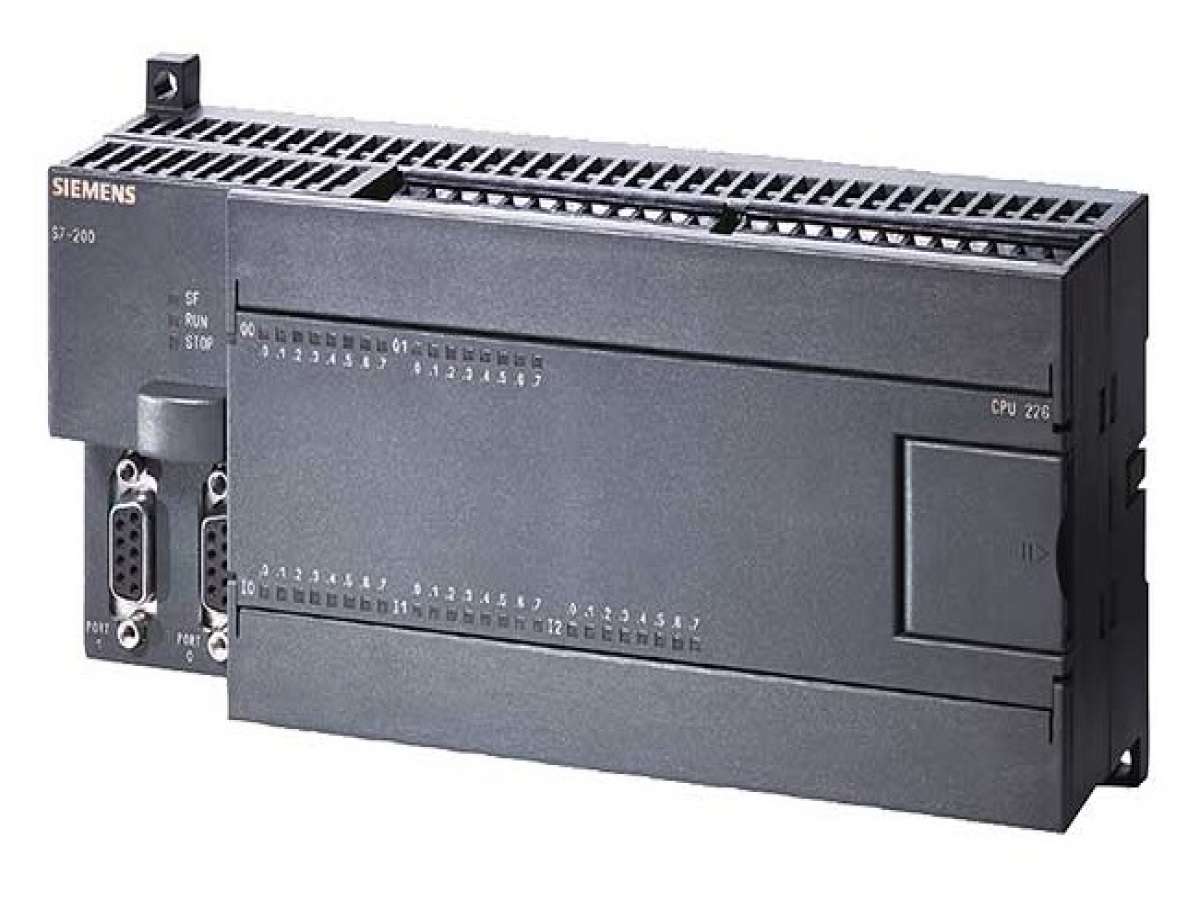

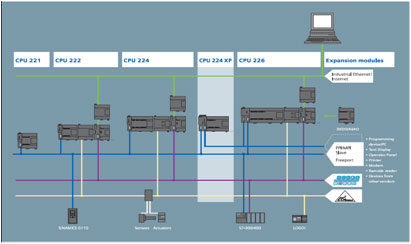

SIMATIC S7-200 CPUs
Description
The SIMATIC S7-200 Micro PLC is in a class by itself:
Exceptionally compact yet remarkably capable – especially with respect to its real-time performance – it is fast,
features great communication options, and comes with easy to operate hardware and software. But there's more to
it than that: The SIMATIC S7-200 Micro PLC has a consistently modular design – for customized solutions which are
not too large for the present but open-ended enough to be expanded anytime in the future. All this makes the
SIMATIC S7-200 Micro PLC a highly effective and economical solution for automated control in the compact
performance range.

CPU


CPU 221
CPU 222
CPU 224
CPU 224 XP
CPU 224 XPsi
CPU 226

integrated
4 KB
4 KB,
8/12 KB
12/16 KB
16/24 KB
bit operations
0.22 μs
0.22 μs
0.22 μs
0.22 μs
0.22 μs
counters/times
256/256
256/256
256/256
256/256
256/256
Digital inputs
6
8
14
14
14
Digital Output
4
6
10
10
10
Analog Input
2

Analog Output
1

Dimensions
90 x 80 x 62
90 x 80 x 62
120.5 x 80 x 62
140 x 80 x 62
196 x 80 x 62
 Interfaces
MPI/DP
MPI/DP
MPI/ DP/PN
MPI/DP


I/O Module

Digital expansions
"Description SIMATIC S7-200 is designed as a consistently modular system. It provides you with a modular system with expansion modules which can be scaled to suit your requirements "



EM 221
EM 231
EM 223

Digital inputs
8

Digital Output
16
4/8
4/8/16/32
Dimensions
46 x 80 x 62
71.2 x 80 x 62
46 x 80 x 62


Analogmoduls
Description
SIMATIC S7-200 is designed as a consistently modular system. It provides you with a modular system with expansion modules which can be scaled to suit your requirements 12-bit resolution and various input and output ranges enable sensors and actuators to be connected without the need for additional amplifiers. There are analog modules from 4/0, 8/0, 0/4 to 4/1 to in/outputs, all with extremely short conversion times "


EM 231
EM 232
EM 235

Analog inputs
4/8/16/32

4
Analog Output
4/8/16/32
2/4
1
Dimensions
71,2 x 80 x 62
46 x 80 x 62
71,2 x 80 x 62

Special I/O
Description
SIMATIC S7-200 has a consistently modular design. In addition to expansion and communication modules, the modular system provides a range of specific expansions for positioning., weighing technology and  temperature measurement.

modules
Temperature measurement


EM 231 TC
EM 231 RTD
EM 253  positioning
SIWAREX MS

Number of inputs
4,8
2/4
5
2
Input type
Thermocouples
Type S, T, R, E, N, K, J Voltage +/–80 mV
Pt 100, 200, 500, 1000 ohm,Pt 10.000,
Ni 10, 120, 1000 ohm,R 150, 300, 600 ohm
5  (RP, LMT–, LMT+, ZP, STP)
Strain gages in 4-wire or
6-wire system
Dimensions
71.2 x 80 x 62
71.2 x 80 x 62
71.2 x 80 x 62
71.2 x 80 x 62

Communication

Model
Communication modules
Ethernet/Internet
Modem communication modules
EM 277  DP
CP 243-2
CP 243-1
CP 243-1 IT
EM 241 modem
SINAUT MD 720-32

Transmission rate
9,600 baud up to 12 Mbaud
5 ms cycle time with 31 slaves
10/100 Mbit/s
10/100 Mbit/s

connection
Analog telephone
GPRS/GSM modem
Communication
MPI/DP
AS-Interface

PPI, Modbus

Dimensions
71.2 x 80 x 62
71.2 x 80 x 62
71.2 x 80 x 62
71.2 x 80 x 62
71.2 x 80 x 62
22.5 x 99 x 114

ORDERING
CPU
 6ES7 211-0AA23-0XB0 CPU 221 DC/DC/DC (not expandable)
 6ES7 211-0BA23-0XB0 CPU 221 AC/DC/relay (not expandable)
6ES7 212-1AB23-0XB0 CPU 222 DC/DC/DC
6ES7 212-1BB23-0XB0 CPU 222 AC/DC/relay
 6ES7 214-1AD23-0XB0 CPU 224 DC/DC/DC
 6ES7 214-1BD23-0XB0 CPU 224 AC/DC/relay
 6ES7 214-2AD23-0XB0 CPU 224XP DC/DC/DC
 6ES7 214-2BD23-0XB0 CPU 224XP AC/DC/relay
6ES7 214-2AS23-0XB0 CPU 224XPsi DC/DC/DC (current-sinking digital outputs)
 6ES7 216-2AD23-0XB0 CPU 226 DC/DC/DC
 6ES7 216-2BD23-0XB0 CPU 226 AC/DC/relay
Digital modules
6ES7 221-1BF22-0XA0 Expension 8 DI 24 V DC
6ES7 221-1EF22-0XA0 Expension 8 DI 120/230 V
6ES7 221-1BH22-0XA0 Expension 16 DI 24 V DC
 6ES7 222-1BF22-0XA0 Expension 8 DO 24 V DC
6ES7 222-1HF22-0XA0 Expension 8DO relay
 6ES7 222-1EF22-0XA0 Expension 8DO
6ES7 222-1BD22-0XA0 Expension 4 x DO 24 V DC 5 A
6ES7 222-1HD22-0XA0 Expension 4 x DO relay 10 A
6ES7 223-1BF22-0XA0 Expension 4DI,4DO
6ES7 223-1HF22-0XA0 Expension 4DI,4DO relay
6ES7 223-1BH22-0XA0 Expension 4DI,4DO relay
6ES7 223-1PH22-0XA0 Expension 4DI,4DO relay
6ES7 223-1BL22-0XA0 Expension16DI,16DO
6ES7 223-1PL22-0XA0 Expension 16DI,16DO relay
6ES7 223-1BM22-0XA0 Expensionl 32 x DI,32  DO
6ES7 223-1PM22-0XA0 Expension 32DI,32DO relay
Analog modules
6ES7 231-0HC22-0XA0 Expension 4 AI
6ES7 231-0HF22-0XA0 Expension 8 AI
6ES7 232-0HB22-0XA0 Expension 2 AO
6ES7 232-0HD22-0XA0 Expension 4 AO
6ES7 235-0KD22-0XA0 Expension 4 AI/1 AO
Communication
 6ES7 277-0AA22-0XA0 EM 277 Communication PROFIBUS DP slave
6GK7 243-2AX01-0XA0  CP 243-2  AS-Interface master
6ES7 241-1AA22-0XA0 EM 241  Modem
6GK7 243-1EX00-0XE0 CP 243-1  Industrial Ethernet
6GK7 243-1GX00-0XE0 CP 243-1 IT  HTTP server, FTP client, FTP server,8 MB flash file system
6NH9720-3AA00 GSM/GPRS modem SINAUT MD
6NH9860-1AA00 GSM/GPRS modem antenna ANT
Specific expansions
6ES7 231-7PB22-0XA0 Expension RTD 2 AI
6ES7 231-7PC22-0XA0 Expension RTD 4 AI
6ES7 231-7PD22-0XA0 Expension TC 4 AI
6ES7 231-7PF22-0XA0 Expension TC 8 AI
6ES7 253-1AA22-0XA0 Expension  Positioning module
7MH4930-0AA01 Expension SIWAREX MS weighing module for connecting one scale
ACCESSOries
 6ES7 291-8BA20-0XA0 Battery cartridge
6ES7 291-8GF23-0XA0 Memory cartridge, 64 KB
6ES7 291-8GH23-0XA0 Memory cartridge, 256 KB
6ES7 297-1AA23-0XA0 Real-time clock with battery cartridge
6ES7 290-6AA20-0XA0 Extension cable for expansion modules, 0.8 m
 6ES7 901-3CB30-0XA0 PC/PPI cable, RS 232/485 cable for PC/laptop/modem/etc. to S7-200, max. 187.5 kbit/s,Multimaster, ASCII, Freeport
6ES7 901-3DB30-0XA0 PC/PPI cable, USB/485 cable for PC/laptop to S7-200, max. 187.5 kbit/s, Multimaster
6ES7 901-0BF00-0AA0 MPI cable (5 m)
6ES7 901-3EB10-0XA0 TD 100C
6EP1 332-2BA10 SITOP smart 2.5 A
6EP1 333-2AA01 SITOP smart 5 A
6EP1 334-2AA01 SITOP smart 10 A
6ES7 272 1BF00 7AA0 Blank template sheets for the front panel of the TD 100C
6ES7 272-1AF00-7AA0 Blank template sheets for the front panel of the TD 200C
6AV6 671-0AP00-0AX0 Blank template sheets for the front panel of the TD 400C
7MH4 702-8CA SIWATOOL cable for PC/laptop to SIWAREX MS weighing module
6ES5 728-8 MA11 Grounding terminal for SIWAREX MS weighing module, 10 pcs./unit
HMI
6ES7 272-1BA10-0YA0 TD 100C text display
6ES7 272-0AA30-0YA0 TD 200 text display,
6ES7 272-1AA10-0YA0 TD 200C text display
6AV6 640-0AA00-0AX1 TD 400C text display
6AV6 640-0BA11-0AX0 OP 73micro, operator panel, 3"
6AV6 640-0CA11-0AX0 TP 177micro, touch panel, 5.7"
Software
6ES7 810-2CC03-0YX0 STEP 7-Micro/WIN V4.0
6ES7 810-2CC03-0YX3 STEP 7-Micro/WIN V4.0
 6ES7 830-2BC00-0YX0 STEP 7-Micro/WIN
6AV6 610-0AA01-2CA8 WinCC flexible 2007
6ES7 840-2CC01-0YX0 S7-200 PC Access V1.0 OPC server software
6ES7 840-2CC01-0YX1 S7-200 PC Access V1.0 OPC server software
 7MH4 930-0AK01 SIWAREX MS
6NH9910-0AA10-0AA3 SINAUT Micro SC 8 OPC Server for GPRS communication with S7-200
6NH9910-0AA10-0AA6 SINAUT Micro SC 64 OPC Server for GPRS communication with S7-200
6NH9910-0AA10-0AA8 SINAUT Micro SC 256 OPC Server for GPRS communication with S7-200
 6ES7298-0AA20-0BA3 Complete systems SIMATIC S7-200
6AV6 650-0BA01-0AA0 OP 73micro starter package
6AV6 650-0DA01-0AA0 TP 177micro starter package
